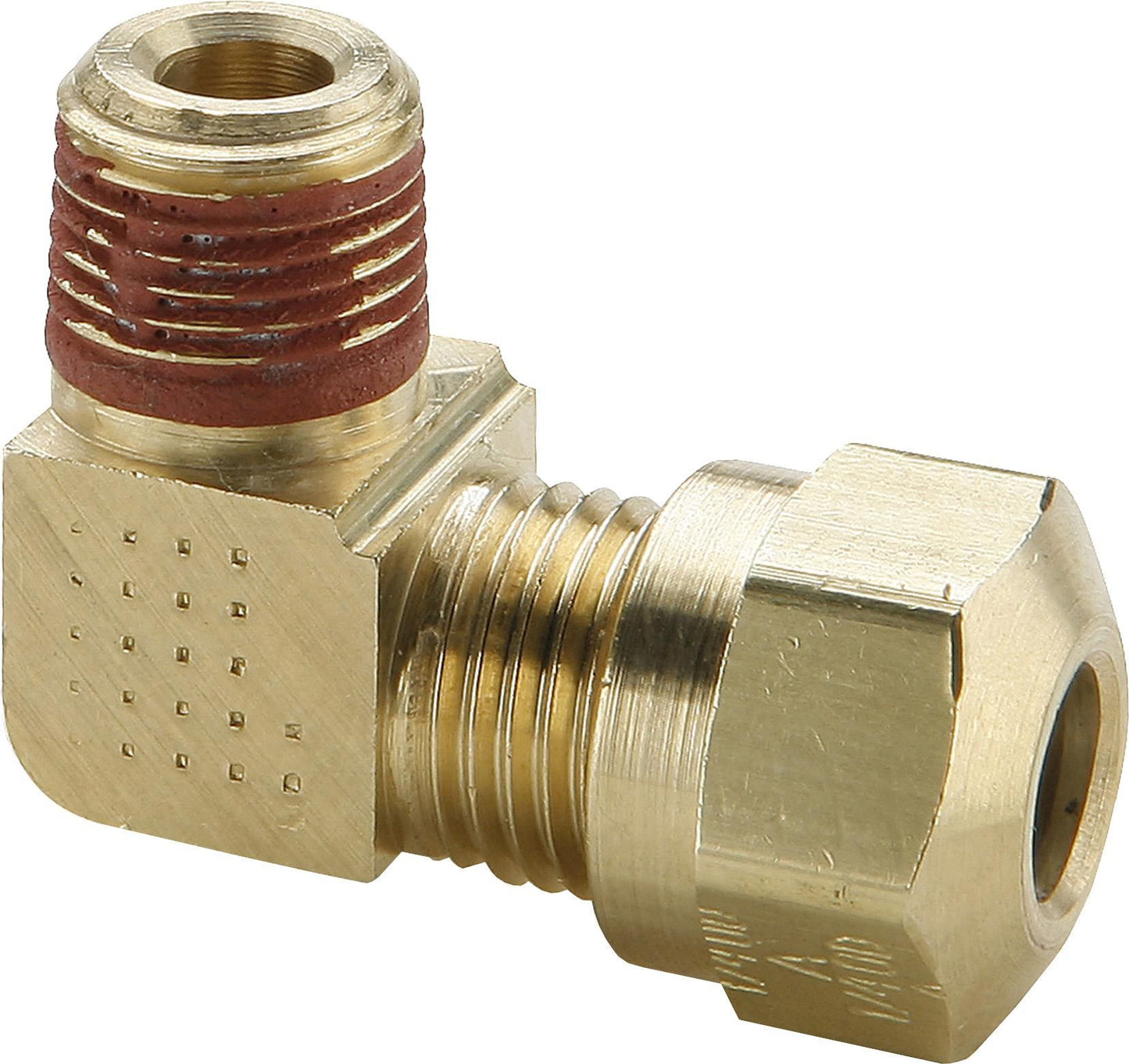

Parker DOT Compression - Nylon Male Elbow 90 Degrees 1/4x1/4
(Pack of
10.0)
Parker's NTA Fittings utilize a ribbed sleeve for compression and positive grip. Fittings meet SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications. Electroless nickel plated bodies can be used with bio-diesel.
Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 Performance
• Meets functional requirements SAE J246 & SAE J1131
• Pre-applied Thread Sealant
Specifications
• Pressure Range: Up to 150 PSI
• Temperature range: –40° to +200° F (–40° to +93° C)
•Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris.
3. Insert tubing until it bottoms on seat.
4. Tighten nut with wrench until thread remains visible on the fitting body; (this will allow for a number of remakes)
Frequently Bought Together
DOT Compression Elbow Male 90° Brass 5/8 x 3/4"
Couldn't load pickup availability
Parker DOT Compression - Nylon Male Connector 1/4x1/4
Couldn't load pickup availability
DOT Compression Connector Female Brass 3/8 x 1/8"
Couldn't load pickup availability
Parker DOT Compression - Nylon Male Elbow 90 Degrees 1/2x1/2
Couldn't load pickup availability
Parker DOT Field Attachable - Spring Guard 3/8
Couldn't load pickup availability
Air Brake Compression Nut Brass 5/32"
Couldn't load pickup availability
Parker DOT Compression - Nylon Male Branch Tee 3/8x1/4x1/4
Couldn't load pickup availability
DOT Transmission Connector Male Brass 1/16 x 5/32"
Couldn't load pickup availability
DOT Transmission Connector Male Brass 1/16 x 1/8"
Couldn't load pickup availability
Rubber Air Hose Bulk 1" x 300'
Couldn't load pickup availability
Rubber Air Hose Lead In 3/8" x 3'
Couldn't load pickup availability
Rubber Air Hose Assembly 3/8" x 25'
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Product Description
Parker's NTA Fittings utilize a ribbed sleeve for compression and positive grip. Fittings meet SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications. Electroless nickel plated bodies can be used with bio-diesel.Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 Performance
• Meets functional requirements SAE J246 & SAE J1131
• Pre-applied Thread Sealant
Specifications
• Pressure Range: Up to 150 PSI
• Temperature range: –40° to +200° F (–40° to +93° C)
•Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris.
3. Insert tubing until it bottoms on seat.
4. Tighten nut with wrench until thread remains visible on the fitting body; (this will allow for a number of remakes)
Technical Specifications
| Item#: | 84283P |
|---|---|
| Class | Compression Air Brake Fittings |
| Fitting Type | Compression - Nylon Tubing |
| Style | DOT |
| Material | Brass |
| Configuration | Male Elbow 90 Degrees |
| Connection Type A x B | Tube x Pipe |
| Fitting Dimension A | 1/4 " |
| Fitting Dimension B | 1/4 " |
| UNSPSC #: | 25171700 |
| TAA Compliant: | Yes |
| Weight: | 0.85 lb |
