Home Air Brake Push-to-Connect Parker DOT PTC Female Connector 1/2x1/4
Air Brake Push-to-Connect

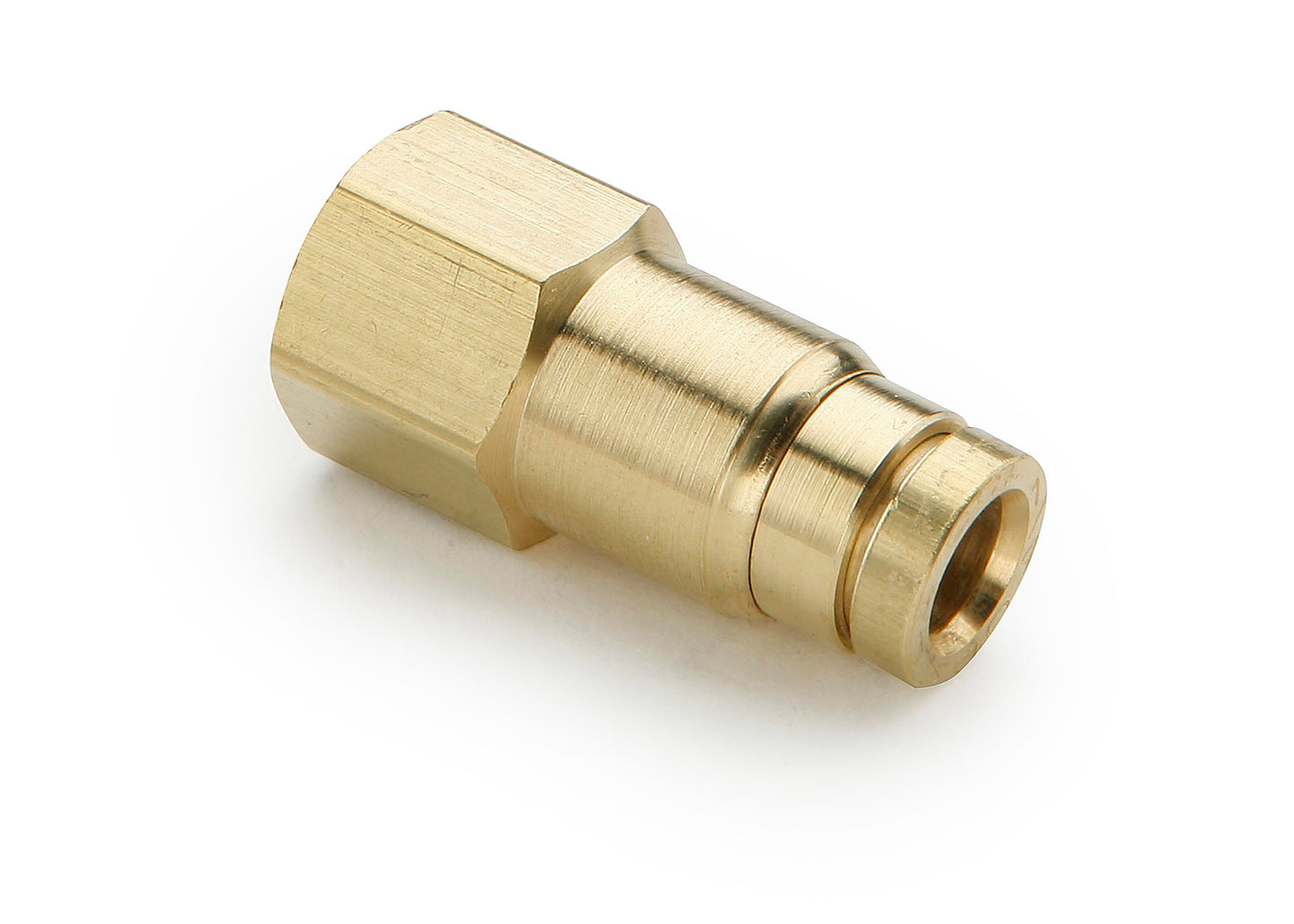

Parker DOT Brass Air Brake Fitting - Push-to-Connect Female Connector 1/2x1/4
(Pack of 5)

Parker

Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.
Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-10
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.

Read More
Check Availability

Catalog page#: 8-7

Frequently Bought Together


DOT Union Elbow Nylon 5/32 x 5/32"

Item#: 62279

DOT Connector Male Brass 1/4 x 1/4-18

Item#: 1511687

Parker DOT PTC Swivel Male Branch Tee 1/4x1/4x1/8

Item#: 27215P

DOT Compression Connector Female Brass 3/8 x 1/8"

Item#: 84262

Parker DOT Compression - Nylon Male Elbow 90 Degrees 1/4x1/4

Item#: 84283P
No product placeholder

Male Branch Tee, 1/4" Tube OD, 1/8" Male Pipe Thread

Item#: 1593598

Silicone Coolant/Heater Hose Clamp 7/16 to 25/32"

Item#: KT14022

Hose Connector Vacuum Line Cap 3/8" ID

Item#: 86612

Air Conditioning R134A Service Port Adapter 3/16"

Item#: KT14392

Hose Clamp 301 SS 11/16 to 1-1/2"

Item#: 86727

Miniature Clamp SS 5/16 to 7/8"

Item#: 86723

Universal Vacuum Hose Connector 3/16"

Item#: 54199

Metric Indented Hex Head Bolt with 17mm Washer

Item#: P59732

Fender Splash Shield Retainer Nylon 20mm

Item#: P53958

Push-Type Retainer Nylon 20mm

Item#: P23453

Product Description

Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.
Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-10
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.

Technical Specifications

Item#: 1608778
Fitting Type Air Brake Fittings - Push-to-Connect
Material Brass
Configuration Female Connector
Connection Type A x B Tube x Pipe
Fitting Dimension A 1/2 "
Fitting Dimension B 1/4 "
Parker Reference No. 66PTC-8-4
UNSPSC #: 27131600
TAA Compliant: Yes
Weight: 0.68 lb
