Home Air Brake Push-to-Connect Parker DOT PTC Swivel Male Branch Tee 1/4x1/4x1/8
Air Brake Push-to-Connect

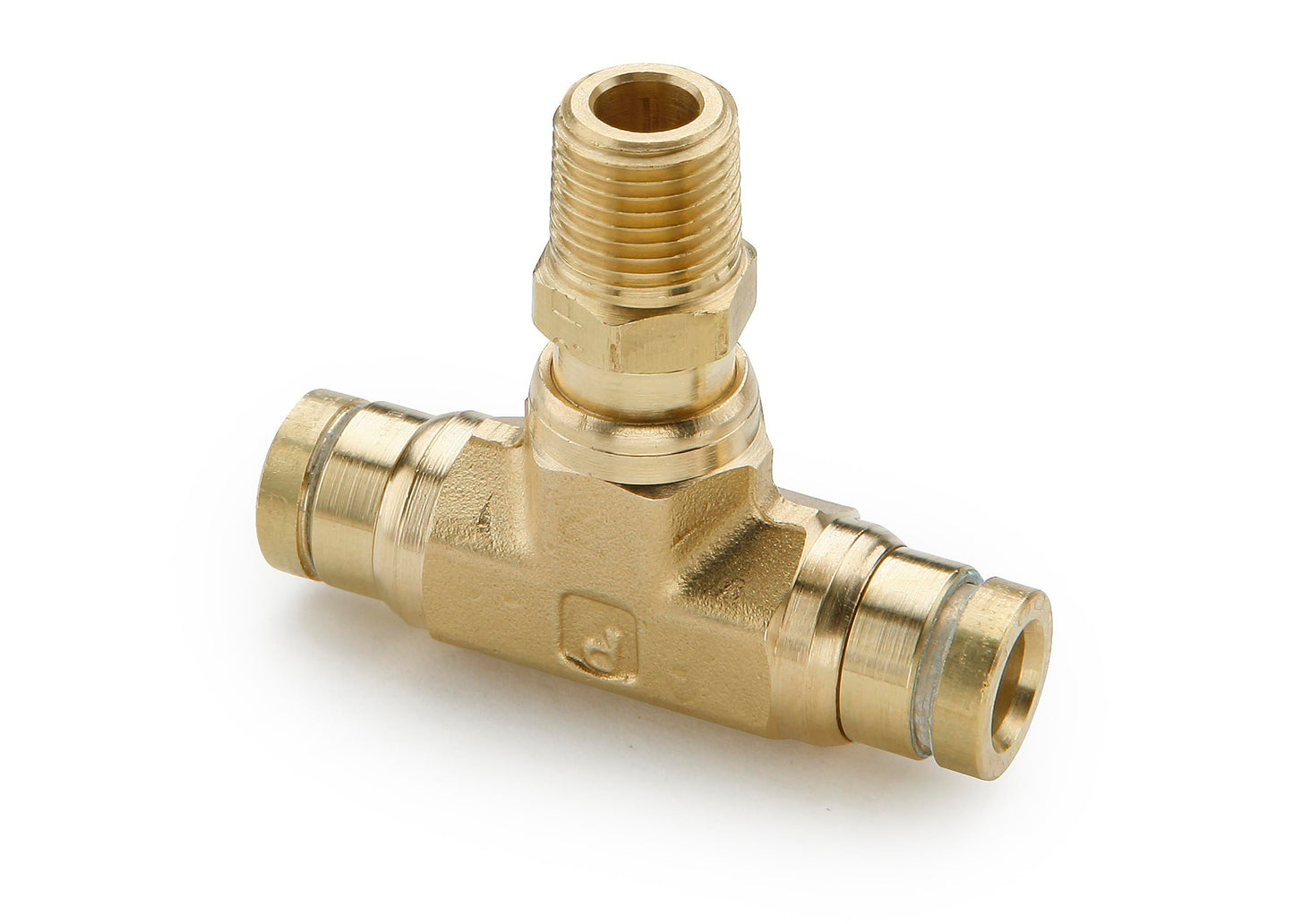

Parker DOT PTC Swivel Male Branch Tee 1/4x1/4x1/8
(Pack of 10.0)

Parker

Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.
Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-5
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.

Read More
Check Availability

Catalog page#: 8-7

Frequently Bought Together


Parker DOT PTC Male Run Tee 1/2x3/8x3/8

Item#: 1608759

Parker DOT PTC Swivel Male Elbow 45 Degrees 3/8x1/4

Item#: 28971P

DOT Elbow Male Nylon 3/8 x 1/2-14

Item#: 91799

Air Brake Compression Nut Brass 5/32"

Item#: 98260

DOT Compression Spring Guard Steel 3/8"

Item#: 1520701

Parker DOT Compression - Nylon Compression Sleeve 3/8

Item#: 84322P

Pneumatic 50:1 Grease Pump Kit for 120lb Drums

Item#: 1677930

Grease Filler Pump with Universal Loader Adaptors

Item#: 1677928

Hand Operated Bearing Packer

Item#: 1677926

Hose Connector Vacuum Line Cap 3/8" ID

Item#: 86612

SAE R16S Hydraulic Hose Rubber 0.81" x 50'

Item#: 1562975

Hydraulic Union 3/8-18 x 3/8-18

Item#: 86255

Push-Type Retainer Nylon 16 x 19mm

Item#: 1468633

Bumper Clip Push-Type Retainer Nylon 18mm

Item#: KT12848

Shield Push-Type Retainer with Metal Insert

Item#: P85253

Product Description

Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.
Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-5
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.

Technical Specifications

Item#: 27215P
Class Air Brake
Fitting Type Air Brake Fittings - Push-to-Connect
Style DOT
Material Brass
Configuration Swivel Male Branch Tee
Connection Type A x B x C Tube x Tube x Pipe
Fitting Dimension A 1/4 "
Fitting Dimension B 1/4 "
Fitting Dimension C 1/8 "
UNSPSC #: 25171700
TAA Compliant: Yes
Weight: 0.935 lb
