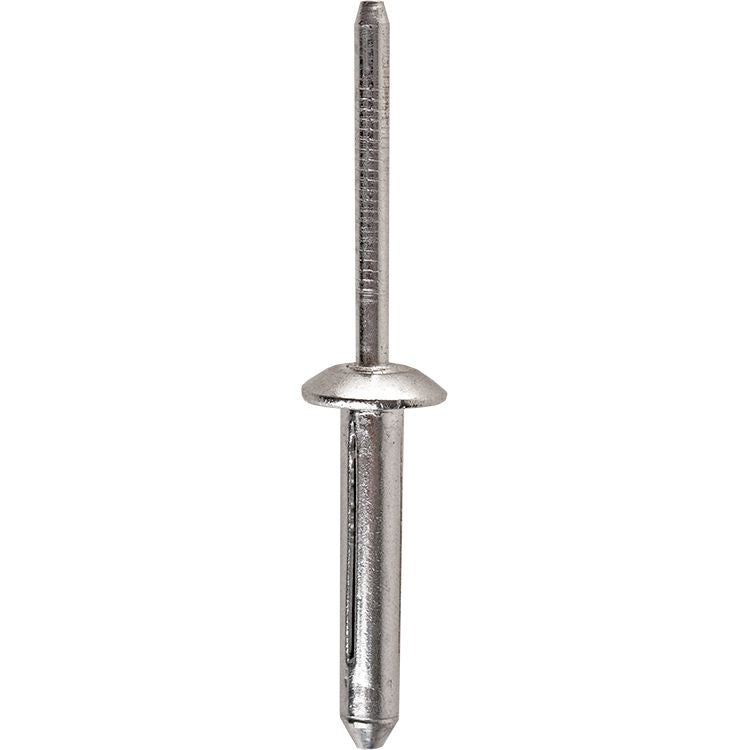

SupraTITE® Structural Tri-Fold Rivet 3/16"
(Pack of
100.0)
Dome Head
• Rubber washer under the head provides additional sealing capabilities
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Often used in the truck trailer industry to join very thin sheets of aluminum or steel where there isn’t access on both sides of the application. They are also used to laminate the trailer body skin from one side of the trailer.
• Split tail formation spreads the tail-bearing load on the rear sheet
• Ideal for use in thin materials
• Excellent multi-grip range
Frequently Bought Together
Hex Cap Screw Property Class 8.8 M6-1 x 16mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 12mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 45mm
Couldn't load pickup availability
Solid Rivet Brazier Head Soft Aluminum 1/4"
Couldn't load pickup availability
Tigerbolt® Nosepiece for 1543731 Rivet Tool 3/16"
Couldn't load pickup availability
HuckBolt® Hucktainer® Rivet Lockbolt 3/8"
Couldn't load pickup availability
Nylon Cable Tie 7-1/2" Black
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
SupraTITE® Structural Tri-Fold Rivet Steel 3/16"
Couldn't load pickup availability
SupraTITE® Structural Tri-Fold Rivet Steel 1/4"
Couldn't load pickup availability
SupraTITE® Structural Tri-Fold Rivet 3/16"
Couldn't load pickup availability
Product Description
Dome Head• Rubber washer under the head provides additional sealing capabilities
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Often used in the truck trailer industry to join very thin sheets of aluminum or steel where there isn’t access on both sides of the application. They are also used to laminate the trailer body skin from one side of the trailer.
• Split tail formation spreads the tail-bearing load on the rear sheet
• Ideal for use in thin materials
• Excellent multi-grip range
Technical Specifications
| Item#: | 1543663 |
|---|---|
| Type | Structural Tri-Fold |
| Head Style | Dome Head (Recessed Crown) |
| Material Body/Mandrel | Aluminum/Aluminum |
| Diameter | 3/16 " |
| Grip Range | 0.062 – 0.250 " |
| Hole Size | 0.209 – 0.221 " |
| Drill Size | #4 |
| Head Diameter | 0.492 " |
| Head Height | 0.099 " |
| Body Length | 0.907 " |
| Shear Strength | 675 lb |
| Tensile Strength | 450 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.4409 lb |
