Turnbuckle, Jaw and Eye, Galvanized, 1" x 6"
(Pack of
1)
SKU:1442097 Item#: 1442097
• Turnbuckles can be used to apply tension to wire rope or cable
• Composed of a forged body and two end fittings
• Must only be applied to loads within their working load limit
• Apply turnbuckles in a straight in-line manner only. Do not allow anything to contact the turnbuckle body or end attachment threaded shanks
• Working load limits are based on a safety factor of 5 to 1
• Meets ASTM F1145 Type 1, Grade 1, Class H
• Apply load to the center of end attachment eyes – do not side load eyes
CAUTION: Do not exceed working load limits.
Frequently Bought Together
Turned Eyebolt, Zinc-Plated, 5/16" x 5"
$0.00
Couldn't load pickup availability
Eyebolt, Machinery, Self-Colored, 1/4" x 1"
$0.00
Couldn't load pickup availability
Turned Eyebolt, Zinc-Plated, 1/4" x 2-1/2"
$0.00
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x19, 3/8", 14,400 lbs Breaking Strength
$0.00
Couldn't load pickup availability
Wire Rope, Steel, Vinyl Coated, 7x19, 3/16", 4,200 lbs Breaking Streng
$0.00
Couldn't load pickup availability
Wire Rope, Steel, Nylon Coated, 7x7, 1/16", 480 lbs Breaking Strength
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Turnbuckle, Jaw and Eye, Galvanized, 1/4" x 4"
$0.00
Couldn't load pickup availability
Turnbuckle, Hook and Eye, Galvanized, 3/8" x 6"
$0.00
Couldn't load pickup availability
Turnbuckle, Stainless Steel, Hook and Hook, 1/4" x 3" Take Up
$0.00
Couldn't load pickup availability
Product Description
• Turnbuckles can be used to apply tension to wire rope or cable• Composed of a forged body and two end fittings
• Must only be applied to loads within their working load limit
• Apply turnbuckles in a straight in-line manner only. Do not allow anything to contact the turnbuckle body or end attachment threaded shanks
• Working load limits are based on a safety factor of 5 to 1
• Meets ASTM F1145 Type 1, Grade 1, Class H
• Apply load to the center of end attachment eyes – do not side load eyes
CAUTION: Do not exceed working load limits.

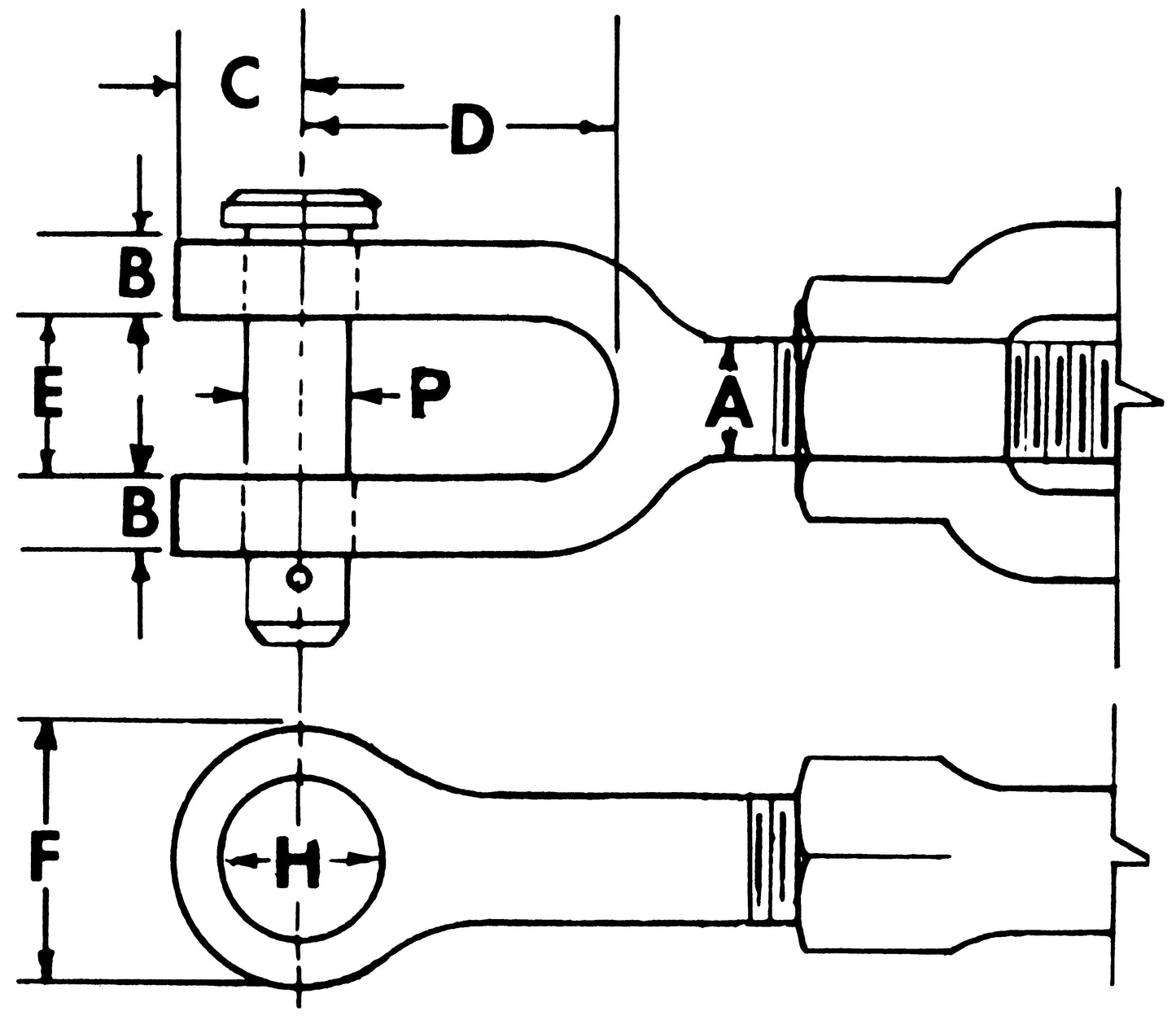

Technical Specifications
| Item#: | 1442097 |
|---|---|
| Manufacturer Model #: | 02673 4 |
| Type | Jaw and Eye |
| Diameter | 1 " |
| Closed Length | 19-1/8 " |
| Working Load Limit | 10,000 lb |
| Material | Forged Steel |
| Finish | Galvanized |
| UNSPSC #: | 24101611 |
| TAA Compliant: | Yes |
Product Restrictions
