Home Cast Iron 130 Hpm Cast Iron Machinable Electrode 3/32
Cast Iron

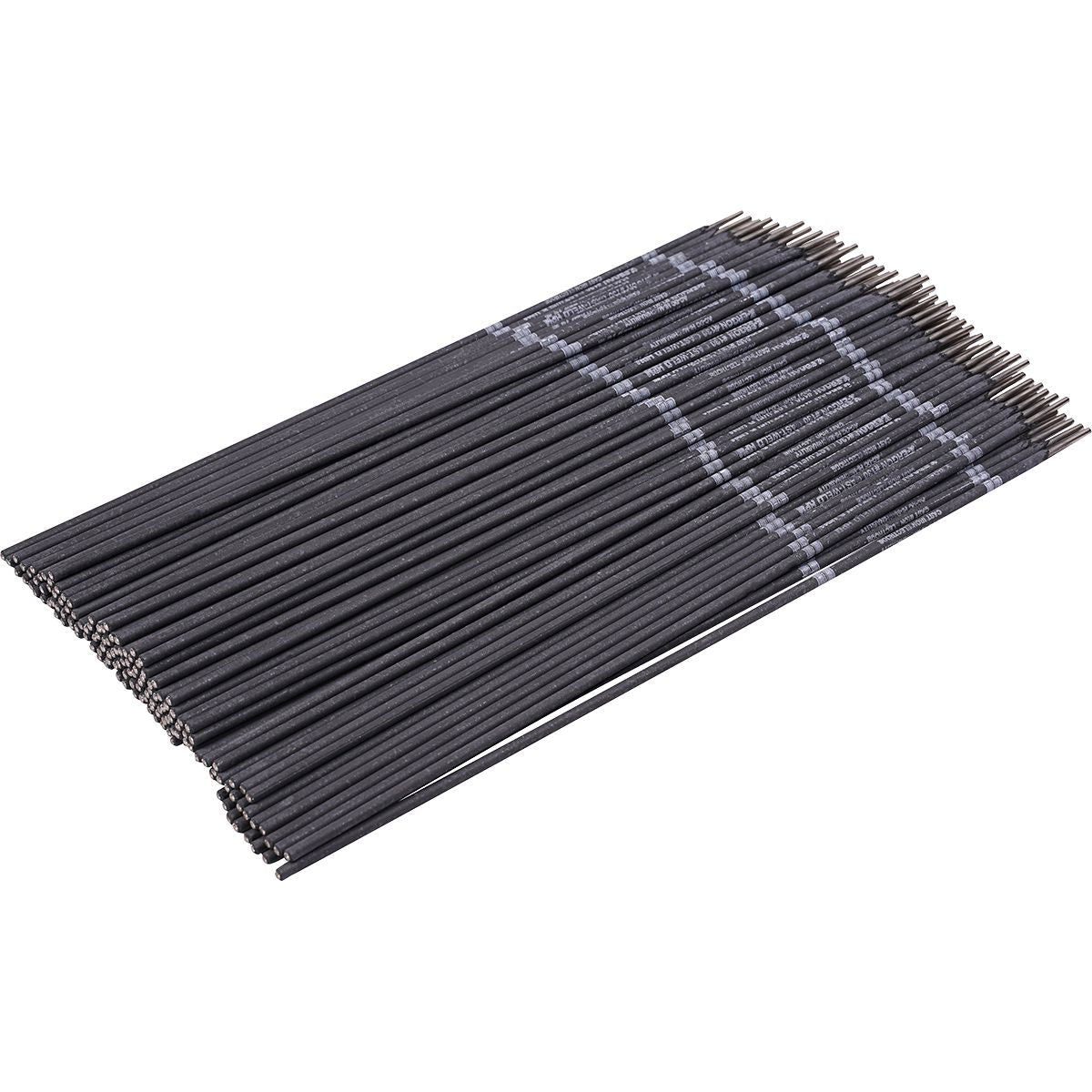

130 Hpm Cast Iron Machinable Electrode 3/32
(Pack of 5)

Kent Automotive

Special coating prevents the electrode from overheating, like conventional cast iron electrodes.
• Machinable deposits with no hard spots
• All-position even in the downhill position
• Perfect for dissimilar cast iron combinations
• Will join all weldable grades of cast iron, cast to steel and cast to stainless
• Nonconductive flux permits welding into holes or cracks without danger of side arcing
• Versatile – Welds all weldable grades of cast iron: gray, malleable, alloyed, ductile, mechanite, nodular, and Ni-Resist
• Tensile Strength: 60,000 PSI/414 Mpa
• Yield Strength: 45,000 PSI/310 Mpa
• Hardness: Up to 80 Rb
• Machinability: Excellent
• Color Match: Excellent
• Current: DCEP (DC+) or AC

Read More
Check Availability

Frequently Bought Together


131 Cast-Weld Special Purpose Cast Iron Electrode 1/8

Item#: EG13140000

889 Cast Iron Stick Rod Electrode 1/8"

Item#: P12003

130T Machinable Cast Iron Tig Alloy 1/16X36

Item#: EG2007130T

Front Bumper Trim Panel/Running Board Split Rivet

Item#: KT13527

Push-Type Retainer Nylon 16 x 19mm

Item#: 1468633

Bumper Clip Push-Type Retainer Nylon 18mm

Item#: KT12848

1/4 on 1/4 Dimension I Double Pass Overlay

Item#: VP2620B

3/16 on 3/16 Dimension I Single Pass Overlay

Item#: VP2610B

201 Rectangular Wear Disc Plate Kit

Item#: P7579

Oxy-Therm Striker Plate

Item#: CW3594

192053 Plasma Cutting Drag Shield

Item#: CW4009

9-6506 Plasma Cutting Electrode

Item#: CW3964

Product Description

Special coating prevents the electrode from overheating, like conventional cast iron electrodes.
• Machinable deposits with no hard spots
• All-position even in the downhill position
• Perfect for dissimilar cast iron combinations
• Will join all weldable grades of cast iron, cast to steel and cast to stainless
• Nonconductive flux permits welding into holes or cracks without danger of side arcing
• Versatile – Welds all weldable grades of cast iron: gray, malleable, alloyed, ductile, mechanite, nodular, and Ni-Resist
• Tensile Strength: 60,000 PSI/414 Mpa
• Yield Strength: 45,000 PSI/310 Mpa
• Hardness: Up to 80 Rb
• Machinability: Excellent
• Color Match: Excellent
• Current: DCEP (DC+) or AC

Technical Specifications

Item#: EG13050000
Welding Process Stick
Type Stick
Diameter 3/32 "
Tensile Strength 60,000 PSI
Base Metal Cast Iron
Hardness 80 HRB
Polarity DCEP
UNSPSC #: 23271810
TAA Compliant: Yes
Weight: 6.07 lb
