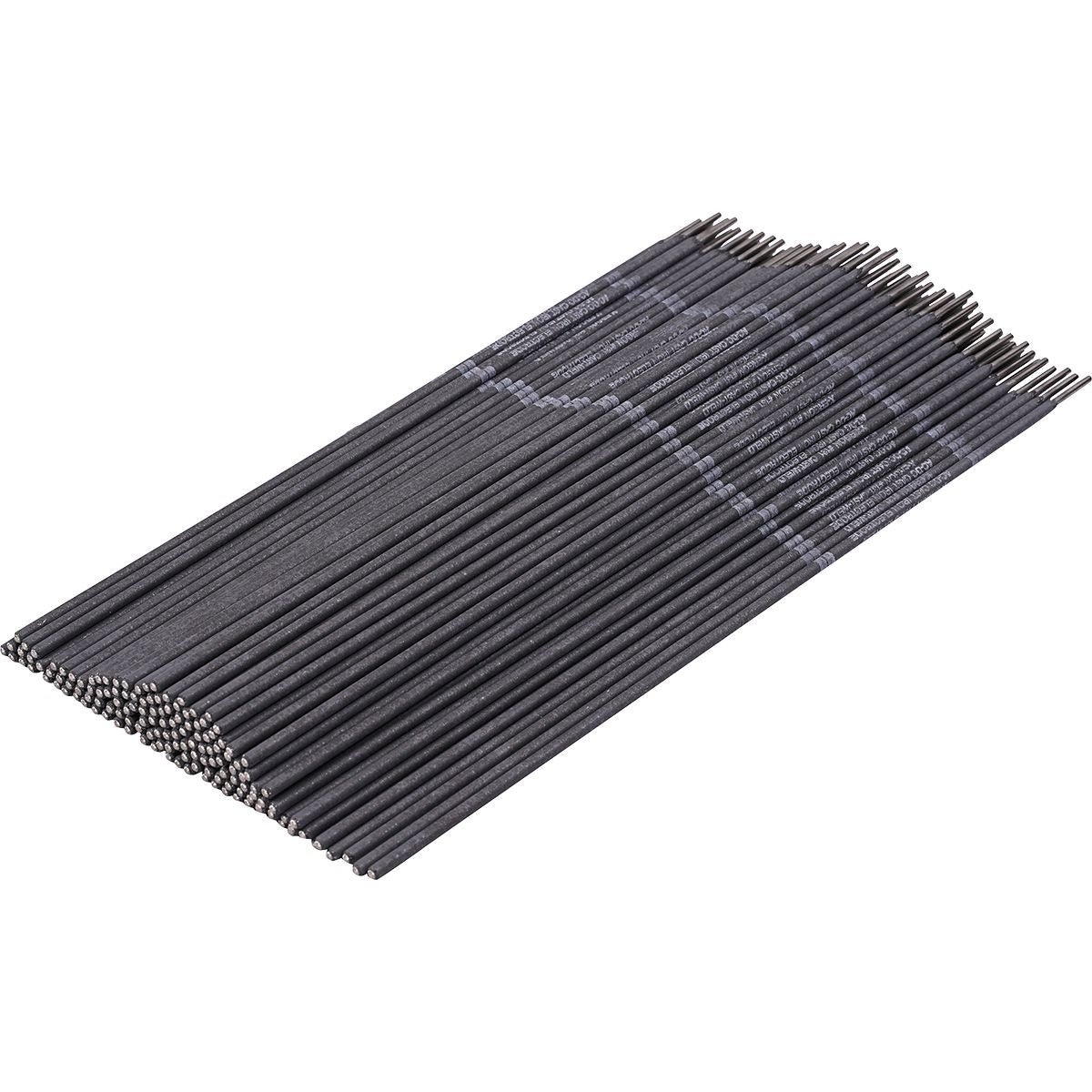

131 Cast-Weld Special Purpose Cast Iron Electrode 3/16
(Pack of
5.0)
A unique coating that is designed for welding on dirty, contaminated, oily or grease-soaked cast iron.
• Excellent Operating Characteristics – Stabilized arc gives non-porous, crack-free deposits
• Versatile – Welds all weldable grades of cast iron: gray, malleable, alloyed, ductile, mechanite, nodular, and Ni-Resist
• Pass-over-pass procedure without chipping slag
• Joins unknown cast irons to cast iron and steel
• Tensile Strength: 65,000 PSI/448 Mpa
• Yield Strength: 35,000 PSI/241 Mpa
• Hardness: 90 Rb
• Machinability: Good
• Color Match: Good
• Current: DCEP (DC+) or AC
Frequently Bought Together
222 Cast Iron Stick Rod Electrode 1/8"
Couldn't load pickup availability
130T Machinable Cast Iron Tig Alloy 3/32X36
Couldn't load pickup availability
211 Cast Iron TIG Wire 1/16"
Couldn't load pickup availability
Spot Weld Remover Drill Bit HSS 2-13/16(M8)
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
Couldn't load pickup availability
201 Rectangular Wear Disc Plate 3 x 6 x 5/32"
Couldn't load pickup availability
Heat Stick 1050F Degrees
Couldn't load pickup availability
Wear Plates Used By Maintenance Welder 1/4X4X5
Couldn't load pickup availability
E7024Mild /Carbon Steel Stick Electrode 3/16"
Couldn't load pickup availability
211 Cast Iron TIG Wire 1/8"
Couldn't load pickup availability
704 Mild/Carbon Steel Stick Rod Electrode 5/32"
Couldn't load pickup availability
Product Description
A unique coating that is designed for welding on dirty, contaminated, oily or grease-soaked cast iron.• Excellent Operating Characteristics – Stabilized arc gives non-porous, crack-free deposits
• Versatile – Welds all weldable grades of cast iron: gray, malleable, alloyed, ductile, mechanite, nodular, and Ni-Resist
• Pass-over-pass procedure without chipping slag
• Joins unknown cast irons to cast iron and steel
• Tensile Strength: 65,000 PSI/448 Mpa
• Yield Strength: 35,000 PSI/241 Mpa
• Hardness: 90 Rb
• Machinability: Good
• Color Match: Good
• Current: DCEP (DC+) or AC
Technical Specifications
| Item#: | EG13120000 |
|---|---|
| Welding Process | Stick Electrode |
| Type | Stick |
| Diameter | 3/16 " |
| Tensile Strength | 65,000 PSI |
| Base Metal | Cast Iron° Cast Iron To Steel |
| Hardness | 90 HRB |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.01 lb |
