133 Cast Iron Electric Nonconductive Flux Non Machinable Wear Resistant Overlays Polarity Dc/Ac 60000 Tensile 38 Rc
(Pack of
5)

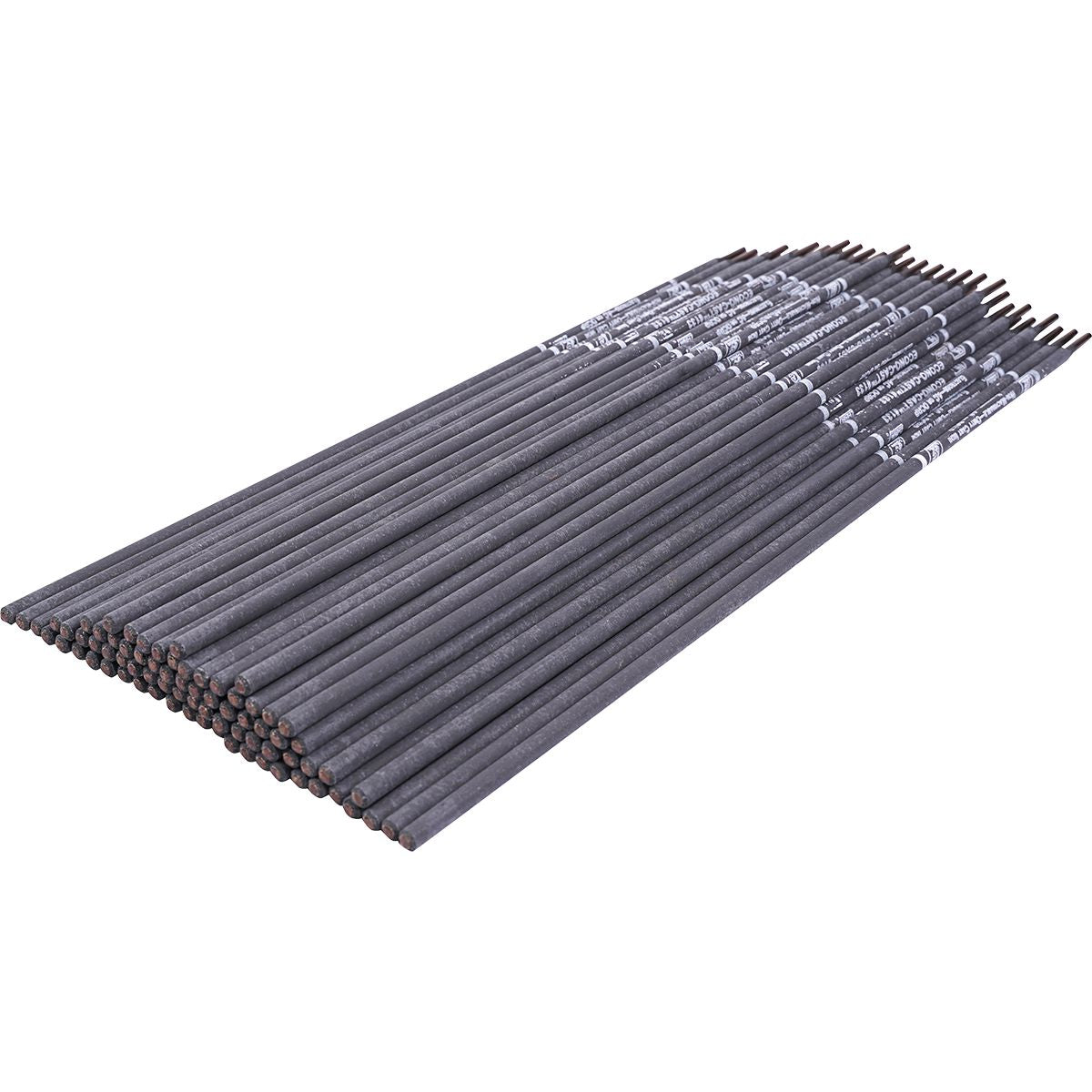

An all-position, non-machinable cast iron electrode designed for welding contaminated cast irons.
• Produces wear-resistant over-lays on cast iron
• Excellent for repairing slurry pumps and cast iron subjected to wear
• Produces sound, porosity-free welds even on dirty, greasy, contaminated cast iron
• Economical – Costs less than most nickel-based electrodes
• Non-Overheating – Allows use of the whole rod without it turning red, causing the flux to break off
• Nonconductive Flux – Will not side-arc in tight areas
• Can also be used as a base on poor cast iron prior to buildup with X-Ergon Cast-Weld™
• Tensile Strength: 60,000 PSI/414 MPa
• Hardness: 38 Rc
• Machinability: Non-machinable
• Color Match: Excellent, will rust to match cast iron if exposed to the elements
• Current: DC or AC
Frequently Bought Together
631 Cast-Weld Fc Alloy Wire .045X11LB
Couldn't load pickup availability
235 Cast Iron Stick Rod Electrode 1/8"
Couldn't load pickup availability
130 Hpm Cast Iron Machinable Electrode 1/8
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
Couldn't load pickup availability
Oxygen Safety Cap Heavy Duty
Couldn't load pickup availability
1/2 on 1/2 Dimension I Double Pass Overlay
Couldn't load pickup availability
1/4 on 3/8 Dimension I Single Pass Overlay
Couldn't load pickup availability
177890 Plasma Cutting Tip
Couldn't load pickup availability
8-7502 Plasma Cutting Electrode
Couldn't load pickup availability
192047 Plasma Cutting Electrode
Couldn't load pickup availability
Product Description
An all-position, non-machinable cast iron electrode designed for welding contaminated cast irons.• Produces wear-resistant over-lays on cast iron
• Excellent for repairing slurry pumps and cast iron subjected to wear
• Produces sound, porosity-free welds even on dirty, greasy, contaminated cast iron
• Economical – Costs less than most nickel-based electrodes
• Non-Overheating – Allows use of the whole rod without it turning red, causing the flux to break off
• Nonconductive Flux – Will not side-arc in tight areas
• Can also be used as a base on poor cast iron prior to buildup with X-Ergon Cast-Weld™
• Tensile Strength: 60,000 PSI/414 MPa
• Hardness: 38 Rc
• Machinability: Non-machinable
• Color Match: Excellent, will rust to match cast iron if exposed to the elements
• Current: DC or AC
Technical Specifications
| Item#: | EG13330000 |
|---|---|
| Welding Process | Stick Electrode |
| Type | Stick |
| Diameter | 5/32 " |
| Tensile Strength | 60,000 PSI |
| Base Metal | Cast Iron |
| Hardness | 38 HRC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.08 lb |
