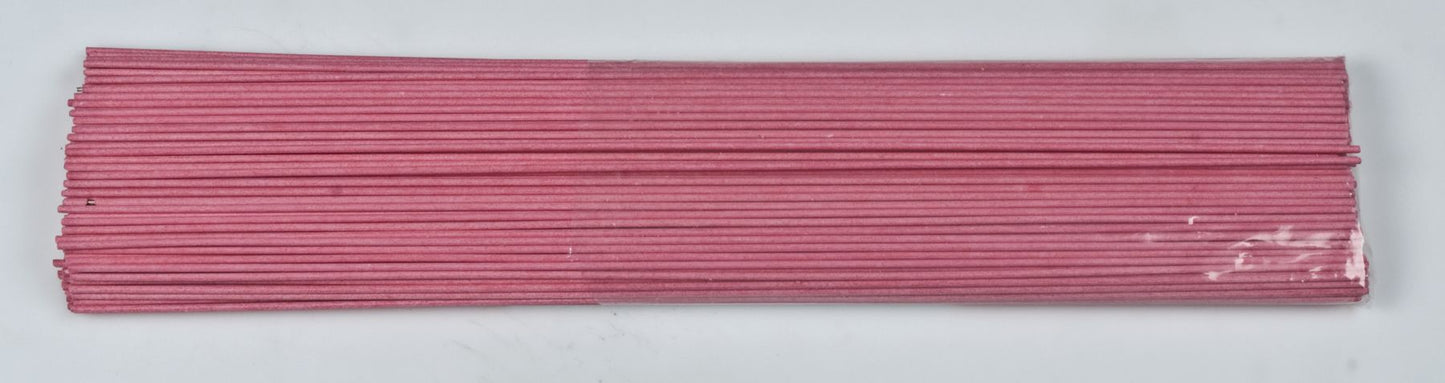

30 Copper and Steel Flux Coated Brazing Rod 1/16"
(Pack of
5)
A selection of brazing alloys for joining cast iron and brazing sheet metal.
Superior Advantages
• Solid, dense deposits that can be machined
• Free-flowing for thin lapping and butted metal joining
• No base metal dilution making tough cast iron repairs possible
Maximum strength for joining and buildup
Flux Coating Color: PinkTensile Strength: 100,000 PSITemperature: 1,300°F to 1,600°F (704°C to 871°C)Recommended Flux: F21 (if needed)
Typical Applications
• Sheet metal and auto body repairs
• Engine heads and blocks
• Piping, plumbing and pumps
• Gears, sprockets and pulleys
Usage ProcedureClean joint areas thoroughly. Heat metal with neutral flame until flux liquifies. Base metals should be dull red as Cronabraze™ 30F commences to penetrate the joint. Use rapid weaving motion with torch to deposit alloy drop-by-drop. Do not concentrate heat enough to melt base metal. Remove flux residue with water.
Frequently Bought Together
23 Copper and Steel Flux Coated Brazing Rod 1/8"
Couldn't load pickup availability
44 Silver Bare Brazing Rod 1/16"
Couldn't load pickup availability
41 Silver Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability
Adhesive-Back Shim Stock 5/32 x 3/8" x 30'
Couldn't load pickup availability
Round Turbo Mixer 18 Element with Integrated Nut
Couldn't load pickup availability
Quick Seal 2000 Sprayable Seam Sealer Gray
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Couldn't load pickup availability
Wheel House Molding Split Rivet Aluminum 3/16"
Couldn't load pickup availability
201 Rectangular Wear Disc Plate Kit
Couldn't load pickup availability
Industrial Graphite Block 2 x 10 x 12"
Couldn't load pickup availability
Wear Plates Used By Maintenance Welder
Couldn't load pickup availability
Product Description
A selection of brazing alloys for joining cast iron and brazing sheet metal.Superior Advantages
• Solid, dense deposits that can be machined
• Free-flowing for thin lapping and butted metal joining
• No base metal dilution making tough cast iron repairs possible
Maximum strength for joining and buildup
Flux Coating Color: PinkTensile Strength: 100,000 PSITemperature: 1,300°F to 1,600°F (704°C to 871°C)Recommended Flux: F21 (if needed)
Typical Applications
• Sheet metal and auto body repairs
• Engine heads and blocks
• Piping, plumbing and pumps
• Gears, sprockets and pulleys
Usage ProcedureClean joint areas thoroughly. Heat metal with neutral flame until flux liquifies. Base metals should be dull red as Cronabraze™ 30F commences to penetrate the joint. Use rapid weaving motion with torch to deposit alloy drop-by-drop. Do not concentrate heat enough to melt base metal. Remove flux residue with water.
Technical Specifications
| Item#: | CW1836 |
|---|---|
| Welding Process | Brazing |
| Type | Flux Coating |
| Diameter | 1/16 " |
| Length | 18 " |
| Tensile Strength | 100,000 PSI |
| Melting Temperature | 1560 - 2000 °F |
| Color | Pink |
| Base Metal | Copper/Steel |
| Recommended Flux | F21 |
| Description | All Purpose |
| UNSPSC #: | 23271804 |
| TAA Compliant: | No |
| Weight: | 5.5 lb |
