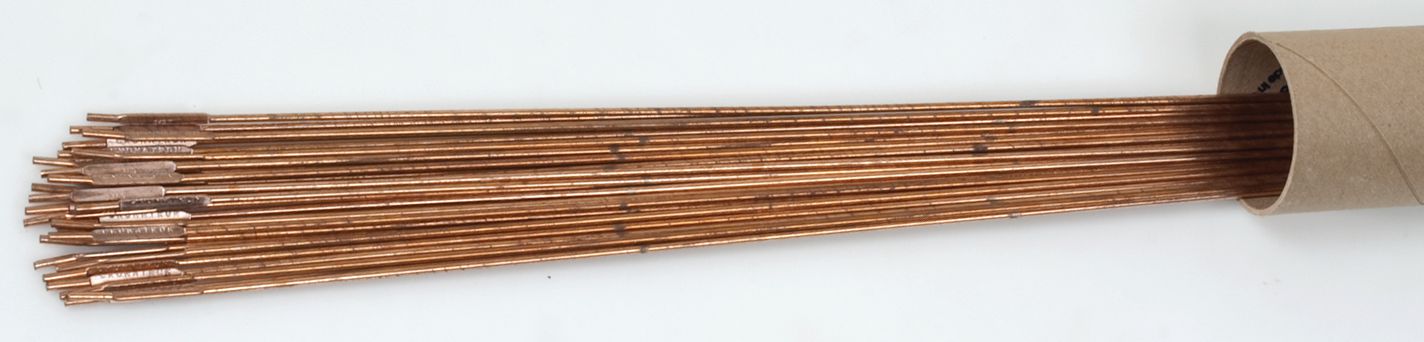

349 Tool Steel TIG Wire, Solid, 33 to 36 HRC Hardness, 100% Ar Shielding Gas, 26% Elongation, 36" Length, 3/32"
(Pack of
2)
Specially formulated for welding P-mold steels and most chrome-moly alloy steels.
Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Tensile Strength: 89,700 PSIYield Strength: 73,400 PSIElongation: 26%Hardness: Rc 33-36Polarity: DC StraightGas: 100% Ar
Typical Applications
• Die-casting dies
• Injection molds
• Compression molding of plastics and chrome-moly steels like AISI 4130, 4140, 8620 and 8640
Usage ProcedureMaintain a short arc with minimal weave. Preheat as prescribed by base metal.
Frequently Bought Together
Shield Push-Type Retainer with Metal Insert
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
344 Tool Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
345 Tool Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
344 Tool Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
3/16 on 3/16 Dimension I Single Pass Overlay
Couldn't load pickup availability
201 Rectangular Wear Disc Plate Kit
Couldn't load pickup availability
Industrial Graphite Block 2 x 10 x 12"
Couldn't load pickup availability
9-6506 Plasma Cutting Electrode
Couldn't load pickup availability
Oxy-Therm Collet 3/8"
Couldn't load pickup availability
Oxy-Therm Collet Grommet 1/4"
Couldn't load pickup availability
Product Description
Specially formulated for welding P-mold steels and most chrome-moly alloy steels.Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Tensile Strength: 89,700 PSIYield Strength: 73,400 PSIElongation: 26%Hardness: Rc 33-36Polarity: DC StraightGas: 100% Ar
Typical Applications
• Die-casting dies
• Injection molds
• Compression molding of plastics and chrome-moly steels like AISI 4130, 4140, 8620 and 8640
Usage ProcedureMaintain a short arc with minimal weave. Preheat as prescribed by base metal.
Technical Specifications
| Item#: | CW1980 |
|---|---|
| Welding Process | TIG |
| Type | Solid |
| Diameter | 3/32 " |
| Length | 36 " |
| Tensile Strength | 89,700 PSI |
| Yield Strength | 73,400 PSI |
| Elongation | 26 % |
| Base Metal | Tool Steel |
| Hardness | 33-36 HRC |
| Shielding Gas | 100% Ar |
| Polarity | DCSP |
| Quantity Per Package | 2.0000 |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 2.5 lb |
