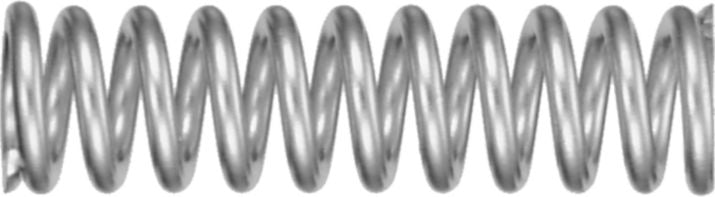

Compression Spring, Steel, 12 Wire Gauge, 13/32" ID, 5/8" OD, 2-3/8" Length, 11-1/2 Coils, 80lbs Maximum Work Load
(Pack of 2)

SKU:89602 Item#: 89602

Kent Automotive

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Frequently Bought Together

Compression Spring 17/64 x 1"

Compression Spring 9/16 x 2-1/4"

Compression Spring 11/32 x 2-1/4"

Marker Pen Pink

Automotive Trim Lifting Masking Tape 10mm x 10m

High-Strength Double Side Molding Tape 1/2" x 50'

BK1 Bearkat Safety Glasses

Wypall L30 Wiper 16.4 x 9.8"

Lens Cleaning Towelettes

Front Fender Liner Push-Type Retainer Nylon 20mm

Inner Fender Shield Attaching Clip Nylon Black

Bumper Drive Rivet Plastic 10mm Hole

Automotive Trim Lifting Masking Tape 10mm x 10m

High-Strength Double Side Molding Tape 1/2" x 50'

Anti-Rattle/Squeak BRS Tape 30mm x 10'

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89602
Type	Compression Spring
O.D.	5/8 "
Length	2-3/8 "
I.D.	13/32 "
Wire Diameter	0.105 "
Wire Gauge	12
Number of Coils	11-1/2
Rate	130 lb./in.
Maximum Work Load	80 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.04 lb
