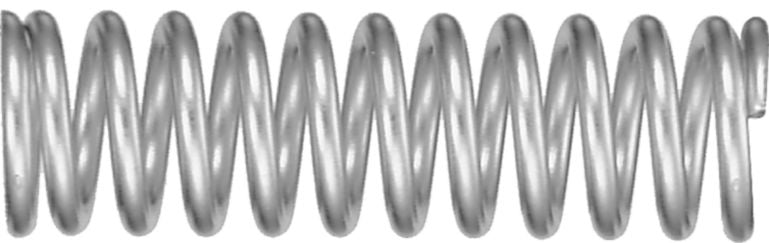

Compression Spring 11/32 x 2-1/4"
(Pack of
5.0)
• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Frequently Bought Together
Paint Marker Red
Couldn't load pickup availability
High-Strength Double Side Molding Tape 1/4" x 50'
Couldn't load pickup availability
Anti-Rattle/Squeak BRS Tape 30mm x 10'
Couldn't load pickup availability
Paint Marker Yellow
Couldn't load pickup availability
Prem Black Nitrile Glvs, XLG
Couldn't load pickup availability
Paint Marker Red
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
Couldn't load pickup availability
High-Strength Double Side Molding Tape 1/4" x 50'
Couldn't load pickup availability
Anti-Rattle/Squeak BRS Tape 30mm x 10'
Couldn't load pickup availability
Marker Pen Pink
Couldn't load pickup availability
Compression Spring 1/4 x 1-1/2"
Couldn't load pickup availability
Compression Spring 7/32 x 1-1/4"
Couldn't load pickup availability
Compression Spring 5/16 x 1-1/2"
Couldn't load pickup availability
Product Description
• The most common spring type• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Technical Specifications
| Item#: | 89576 |
|---|---|
| Type | Compression Spring |
| O.D. | 7/16 " |
| Length | 2-1/4 " |
| I.D. | 11/32 " |
| Wire Diameter | 0.041 " |
| Wire Gauge | 19 |
| Number of Coils | 20-1/2 |
| Rate | 3.4 lb./in. |
| Maximum Work Load | 8 lb |
| Material | Steel |
| UNSPSC #: | 31161904 |
| TAA Compliant: | Yes |
| Weight: | 0.06 lb |
Product Restrictions
