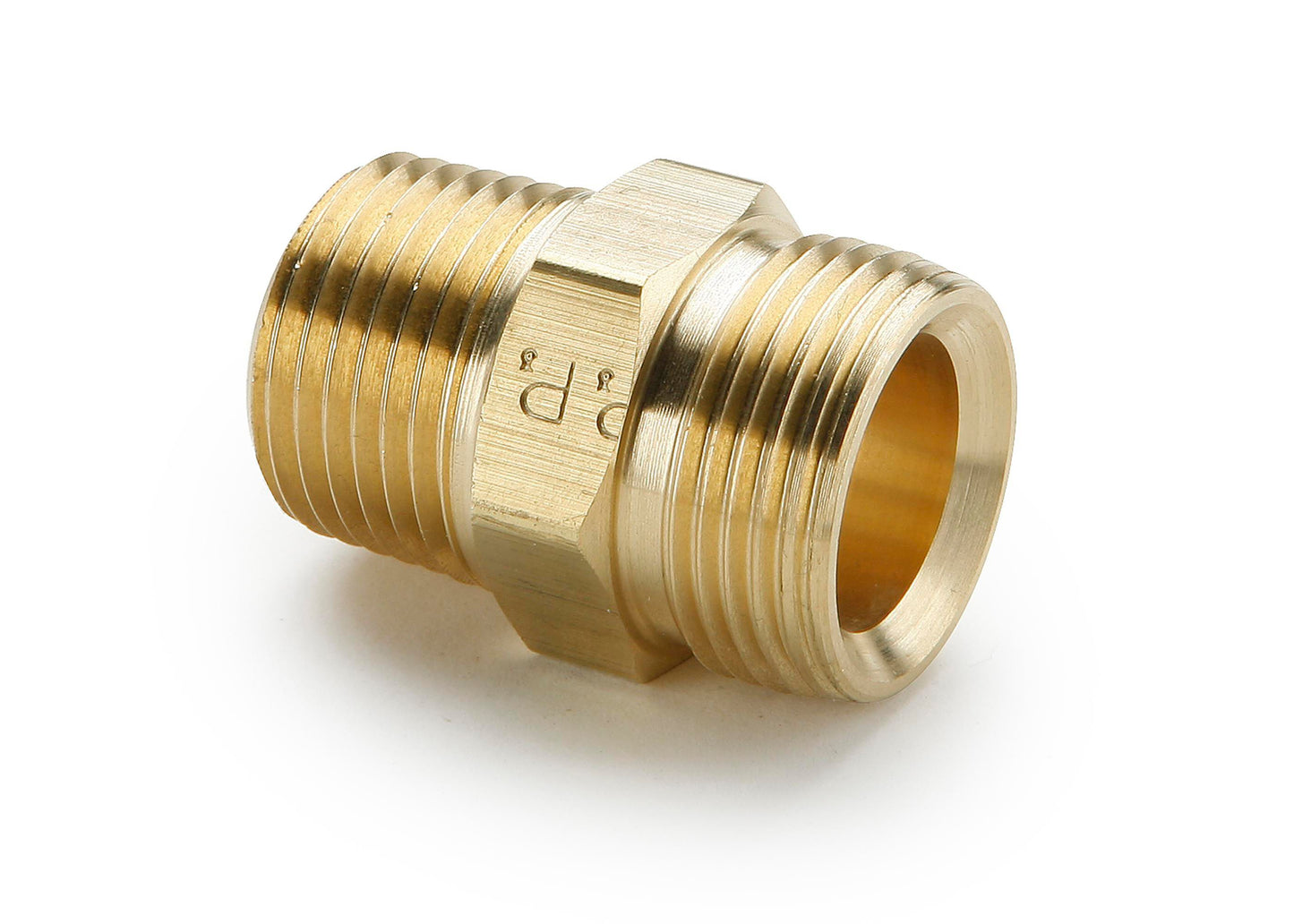

Parker DOT Brass DOT Field Attachable - Adapter 7/8-20x3/8
(Pack of 5)

SKU:97255P Item#: 97255P

Parker

Parker's Air Brake Hose Fittings are field attachable fittings for use with SAE J1402 air brake hose. Easy to assemble and disassemble, these fittings meet D.O.T. requirements when used with SAE J1402 air brake hose.
Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 when used with SAE J1402 air brake hose
Specifications
• Pressure Range: Up to 400 PSI
• Temperature range: –65° to +250° F (–53.8° to +121.1° C)
•Compatible Hose: SAE J1402 air brake hose
Applications
• Air Lines Frame to Axle

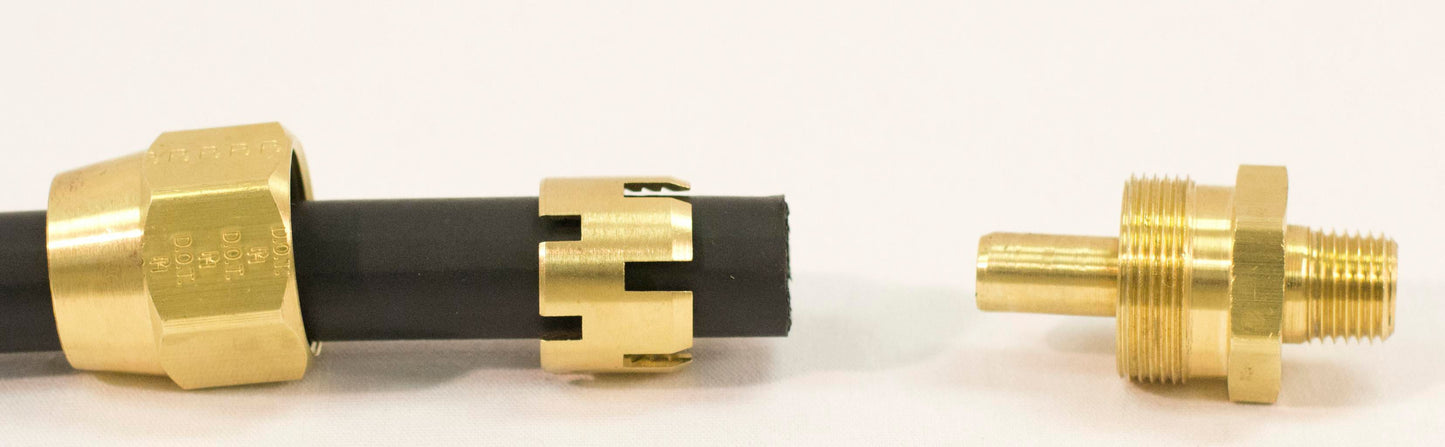

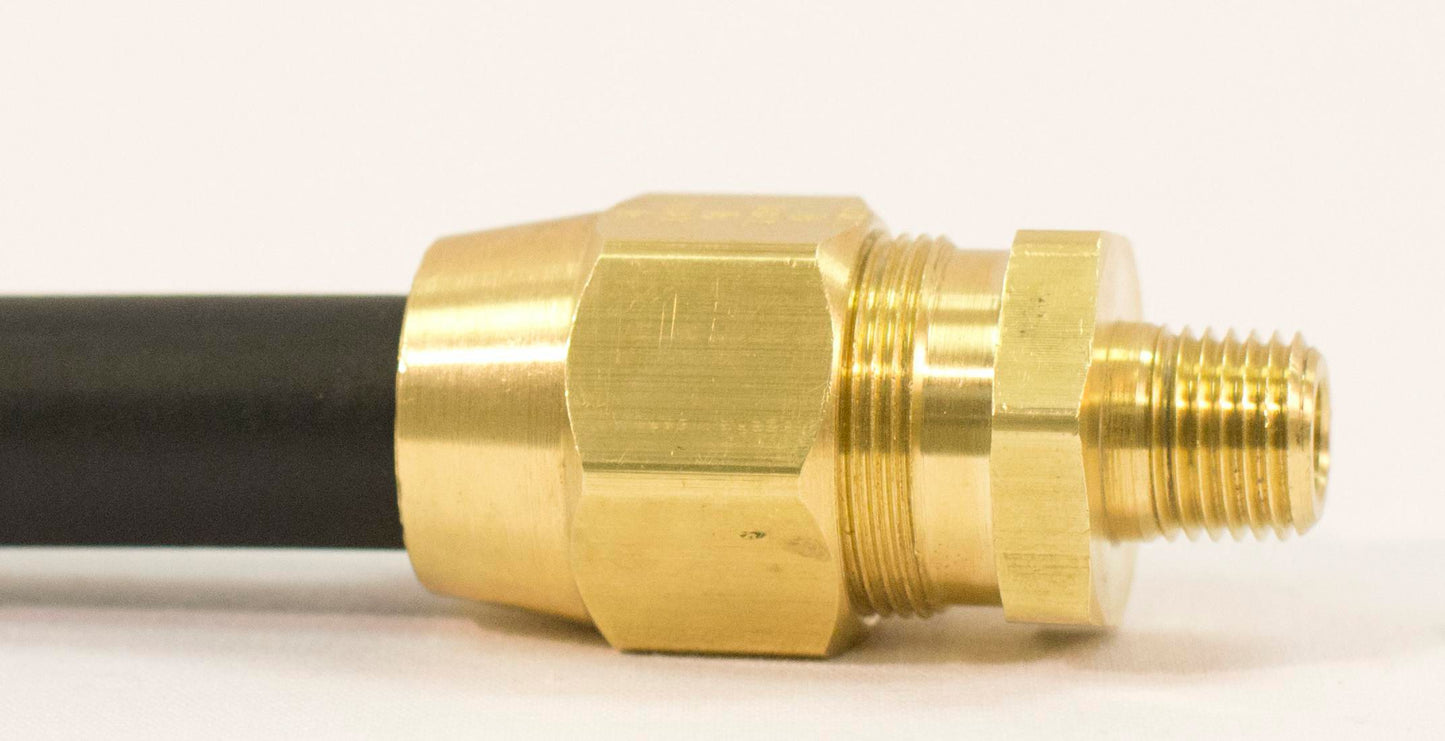

Assembly Instructions
1. Slide nut onto hose.
2. Slide sleeve onto hose with tapered edge toward fitting body.
3. Bottom hose into fitting.
4. Tighten nut until it contacts body hex.
NOTE: Use with Female Connectors.

Check Availability

Quantity

Catalog page#: 8-12

Frequently Bought Together

Air Brake Tank Filler Valve Brass 1/8-27

DOT Compression Elbow Male 45° Brass 3/8 x 3/8"

DOT Compression Nut Brass 1/4"

DOT Compression Elbow Male 90° Brass 3/8 x 1/4"

DOT Compression Elbow Male 90° Brass 3/8 x 3/8"

DOT Compression Elbow Male 45° Brass 3/8 x 1/4"

Hose Clamp 304 SS 9/16 to 1-1/16"

Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/16"

Item#: P63872M01

DOT Connector Male Brass 1/4 x 1/8-27

Slotted Hex Head Hose Clamp 1-9/16 to 2-1/2"

Item#: P28925M01

Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/4"

Item#: P63942M01

FLEXAIR 3/8" I.D. x 50' air hose assembly w/ Industrial safety coupler

Push-Type Retainer Nylon 16 x 19mm

Bumper Fascia General Purpose Split Rivet 3/16"

Specialty Rivet with Plastic Cap Aluminum 3.2mm

Product Description

Parker's Air Brake Hose Fittings are field attachable fittings for use with SAE J1402 air brake hose. Easy to assemble and disassemble, these fittings meet D.O.T. requirements when used with SAE J1402 air brake hose.
Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 when used with SAE J1402 air brake hose
Specifications
• Pressure Range: Up to 400 PSI
• Temperature range: –65° to +250° F (–53.8° to +121.1° C)
•Compatible Hose: SAE J1402 air brake hose
Applications
• Air Lines Frame to Axle
Assembly Instructions
1. Slide nut onto hose.
2. Slide sleeve onto hose with tapered edge toward fitting body.
3. Bottom hose into fitting.
4. Tighten nut until it contacts body hex.
NOTE: Use with Female Connectors.

Technical Specifications

Item#:	97255P
Manufacturer Model #:	76RB-7/8-6
Fitting Type	Compression - Rubber
Style	DOT
Material	Brass
Configuration	Thread Adapter
Connection Type A x B	Straight Thread x Pipe Thread
Fitting Dimension A	7/8-20 "
Fitting Dimension B	3/8-18 "
Parker Reference No.	76RB-7/8-6
Type	Compression
UNSPSC #:	25171700
TAA Compliant:	Yes
Weight:	0.48 lb
