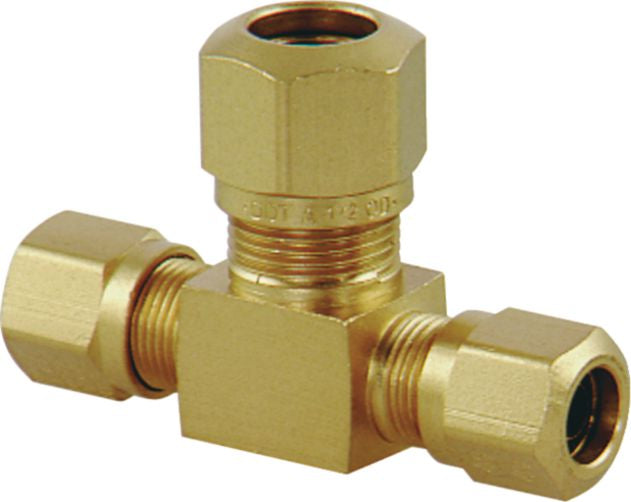

DOT Air Brake Compression Union Tee for Nylon Tubing, Brass, 5/8 x 5/8 x 5/8", Tube x Tube x Tube
(Pack of
2)
SKU:96889 Item#: 96889
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
Frequently Bought Together
DOT Compression Connector Female Brass 1/2 x 7/8"
$0.00
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 5/8 x 3/4"
$0.00
Couldn't load pickup availability
Parker DOT Compression - Nylon Male Connector 1/4x1/4
$0.00
Couldn't load pickup availability
DOT Compression Nut Brass 3/8"
$0.00
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 3/8 x 1/8"
$0.00
Couldn't load pickup availability
DOT Elbow Male 90° Brass 5/8 x 3/8-18
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 3/8 x 1/4-18
$0.00
Couldn't load pickup availability
DOT Compression Run Tee Male 3/8 x 3/8 x 3/8"
$0.00
Couldn't load pickup availability
DOT Compression Union Brass 1/4"
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT
$0.00
Couldn't load pickup availability
Monsoon Hose Nozzle 3/4"
$0.00
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
$0.00
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Fascia Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Product Description
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
Technical Specifications
| Item#: | 96889 |
|---|---|
| Fitting Type | Compression - Nylon |
| Style | DOT |
| Material | Brass |
| Configuration | Union Tee |
| Connection Type A x B x C | Tube x Tube x Tube |
| Fitting Dimension A | 5/8 " |
| Fitting Dimension B | 5/8 " |
| Fitting Dimension C | 5/8 " |
| Size | 5/8"TB |
| Type | Compression |
| UNSPSC #: | 25171700 |
| TAA Compliant: | No |
| Weight: | 0.94 lb |
