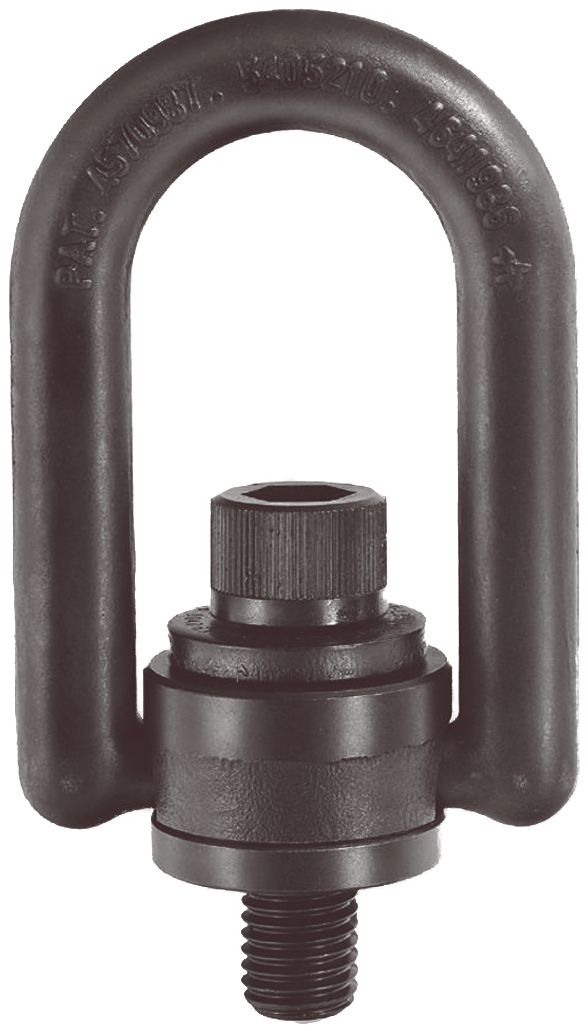

Hoist Ring, Heavy Duty®, 2,250 lb Load Limit
(Pack of
1.0)
• Material: Forged high strength 4140 alloy steel
• Range of Movement: Swivel 360°, Pivot 180° under load
• Design Factor: Minimum of 5:1
• Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209
• Magnetic particle inspected per ASTM 1444
• Black oxide coated
• Each individually serial numbered
• Use Hoist Rings for added lifting safety to avoid eye bolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together

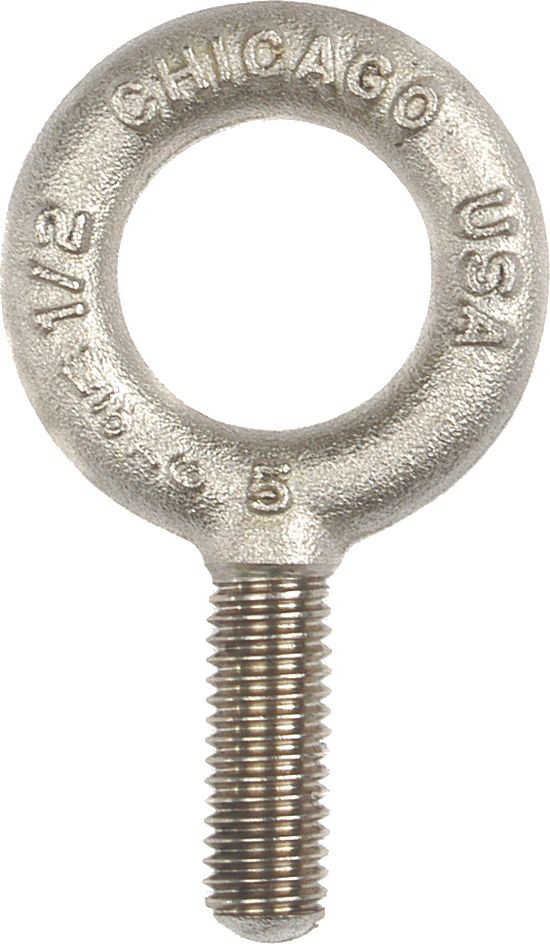

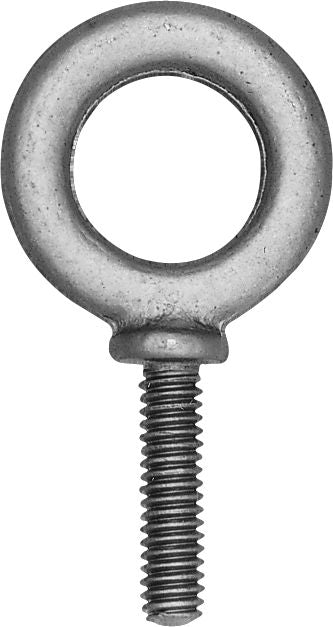

Turned Eyebolt, Zinc-Plated, 3/8" x 2"
Couldn't load pickup availability

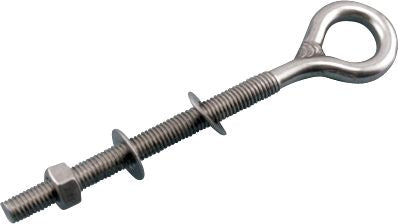

Eyebolt, With Nut, Galvanized, 1/2" x 4-1/2"
Couldn't load pickup availability
Turned Eyebolt, Zinc-Plated, 5/16" x 3"
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, 1,000 lb Load Limit
Couldn't load pickup availability
Fast-Lok® Plate Lfting System
Couldn't load pickup availability

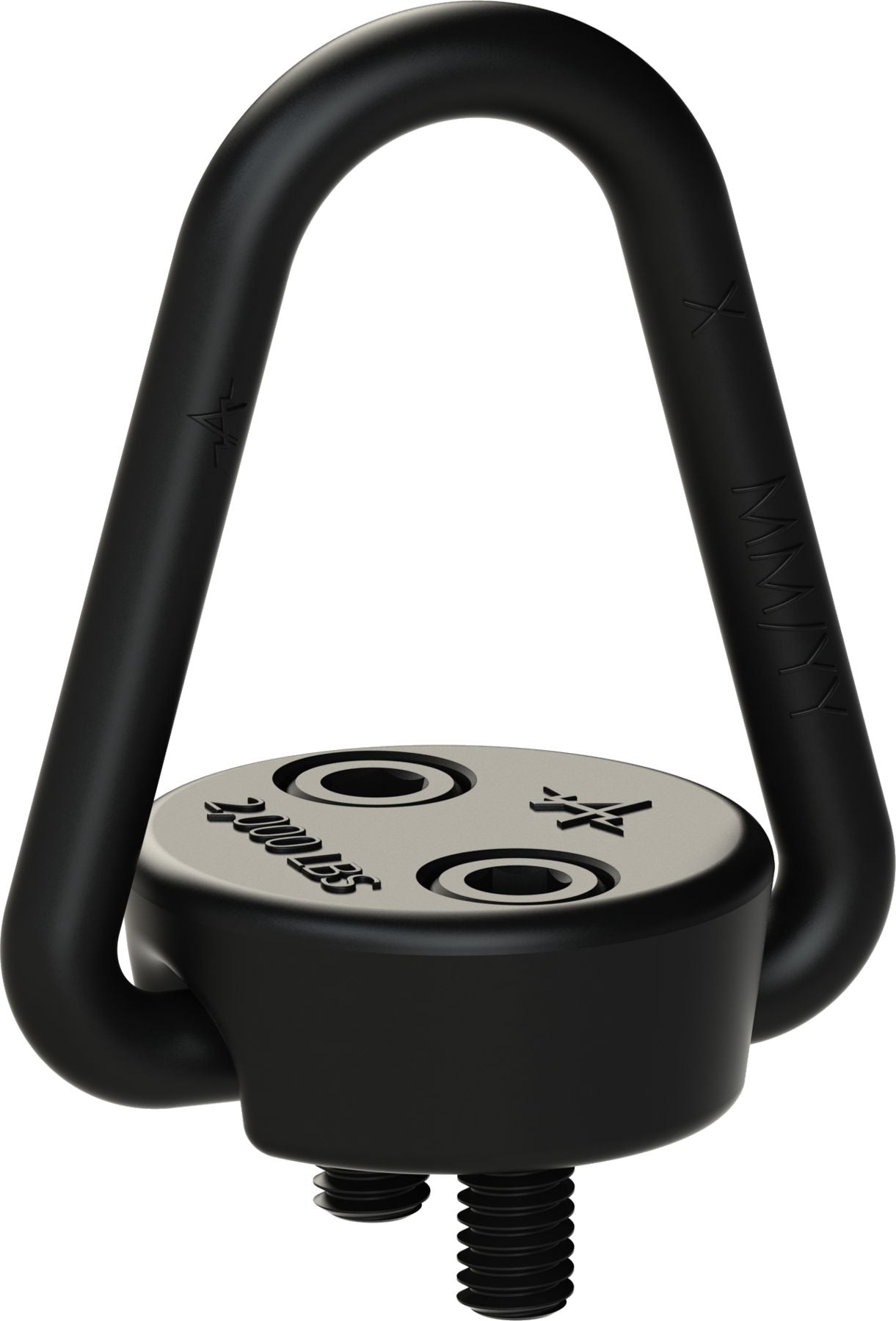

Hoist Ring, Flip-Flop, 5,000 lb Load Limit
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x7, 3/32", 920 lbs Breaking Strength
Couldn't load pickup availability
Wire Rope, Steel, Vinyl Coated, 7x19, 1/4", 7,000 lbs Breaking Strengt
Couldn't load pickup availability
Wire Rope, Steel, Nylon Coated, 7x19, 3/16", 4,200 lbs Breaking Streng
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
Couldn't load pickup availability
Product Description
• Material: Forged high strength 4140 alloy steel• Range of Movement: Swivel 360°, Pivot 180° under load
• Design Factor: Minimum of 5:1
• Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209
• Magnetic particle inspected per ASTM 1444
• Black oxide coated
• Each individually serial numbered
• Use Hoist Rings for added lifting safety to avoid eye bolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
Technical Specifications
| Item#: | 1423168 |
|---|---|
| Type | Heavy Duty |
| Thread Size | 1/2-13 |
| Thread Length | 1.06 " |
| Material | 4140 Alloy Steel |
| Finish | Black Oxide |
| Working Load Limit | 2,250 lb |
| Swivel | 360 ° |
| Pivot | 180 ° |
| Recommended Installation Torque | 25 ft·lbf |

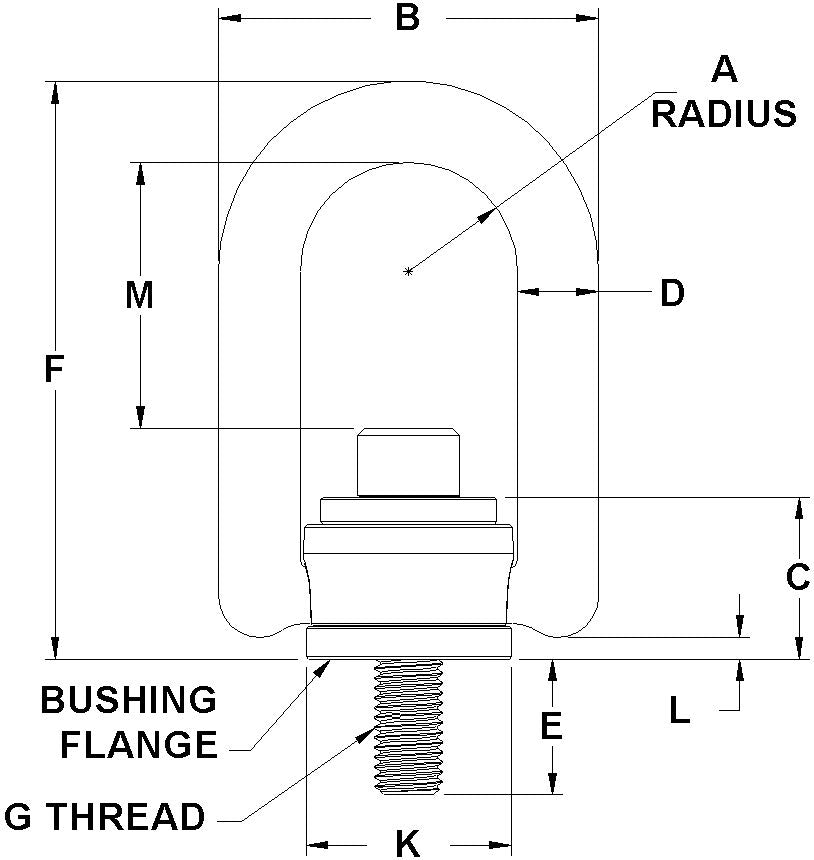

| Dimension A | .65 " |
| Dimension B | 2.29 " |
| Dimension C | .96 " |
| Dimension D | .44 " |
| Dimension E | 1.06 " |
| Dimension F | 3.23 " |
| Dimension G | 1/2-13 " |
| Dimension K | 1.25 " |
| Dimension L | 0.15 " |
| Dimension M | 1.45 " |
| UNSPSC #: | 24101602 |
| TAA Compliant: | Yes |
| Weight: | 0.0 lb |
